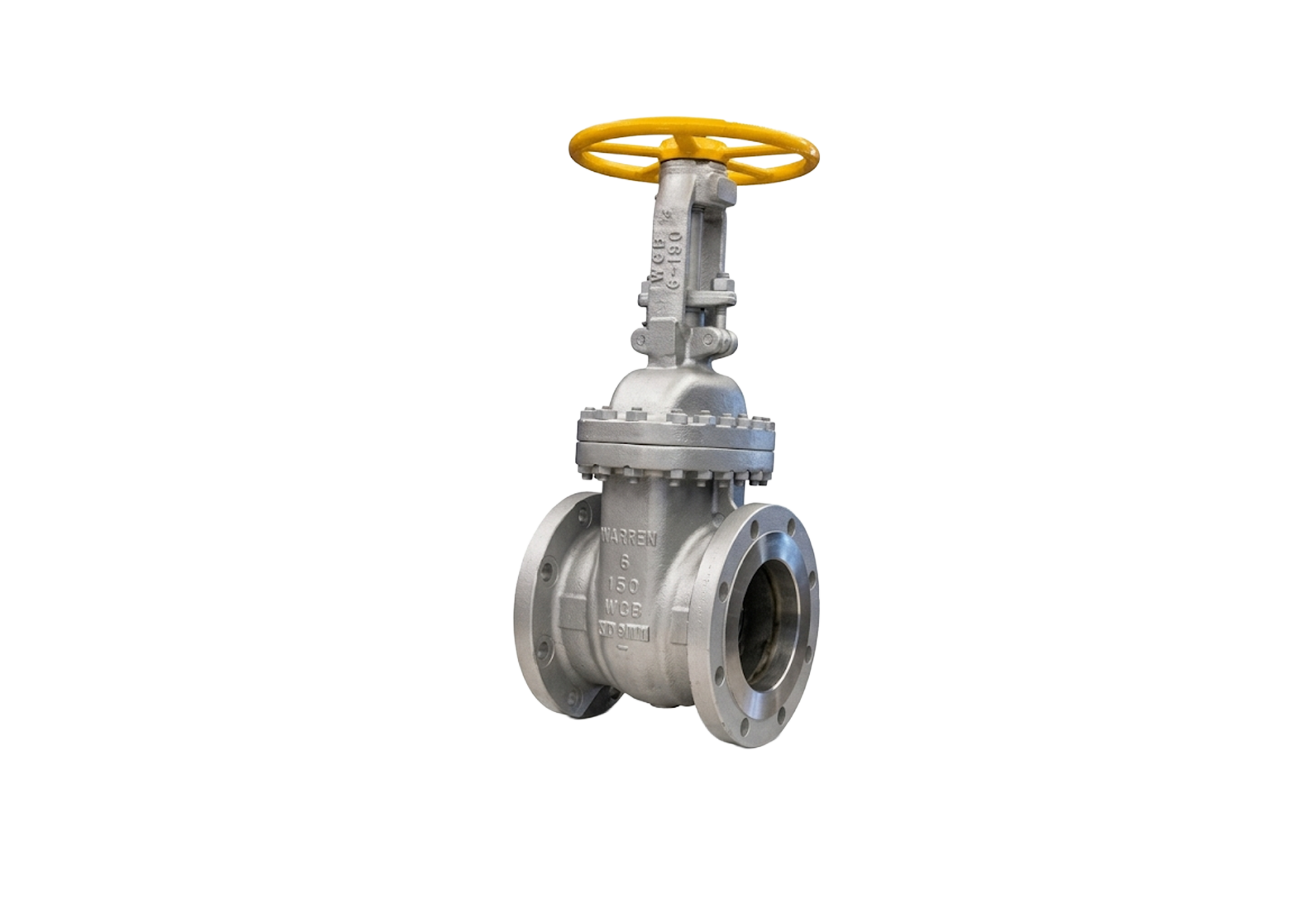

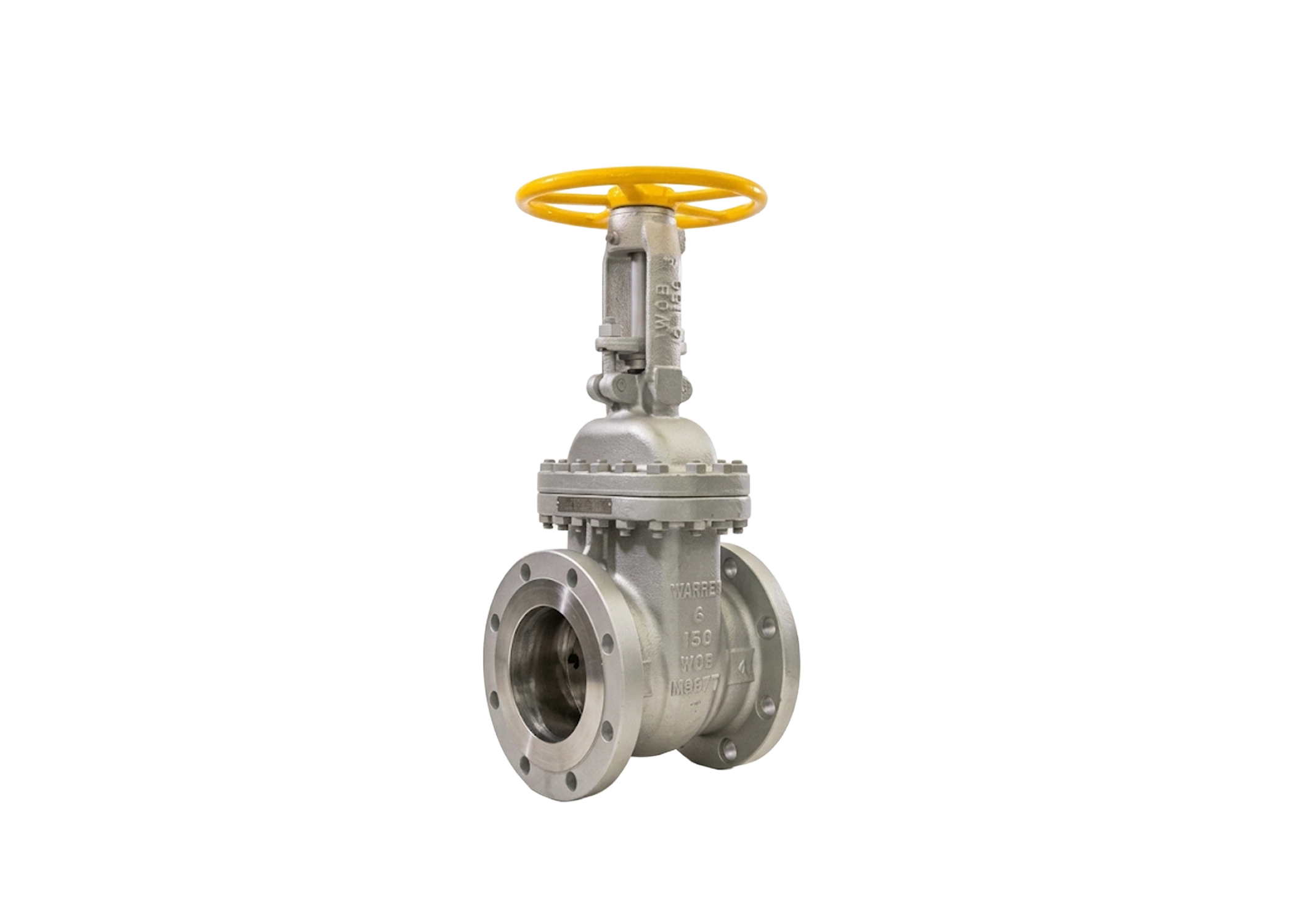

Cast Carbon Gate Valves
Warren Valve's cast carbon gate valve product line includes 1/2”-48”, ANSI Pressure class 150# - 300# - 600# - 900# - 1500#. Material of construction includes cast WCB, and low temperature carbon steel LCC & LCB. Options include NACE compliance, bevel gears, actuation ready mounting pads, thermal relief DTR systems, and double lead stem for quick stroke time. Learn how to order today!
GATE
Sizes
2” - 48”
Pressures (Class / Figure)
150 1155
Pressures (Class / Figure)
300 1305
Pressures (Class / Figure)
600 1605
Pressures (Class / Figure)
900 1905
Pressures (Class / Figure)
1500 1505
Material Grades
WCB, LCC
Trim Materials
Trim 5, 8, 12, 16 & Special Materials
Ends
Raised Face & RTJ
Options
NACE, Bevel Gears, Actuation Ready Mounting Pads, Thermal Relief DTR Systems, Double Lead Stem for Quick Run Time
Features
OS&Y, Rising Stem, Flexible Wedge, Bolted Bonnet, Packing & Gasket (Low Fugitive Emission) *Also available in our Contractor Series 2”-12”
