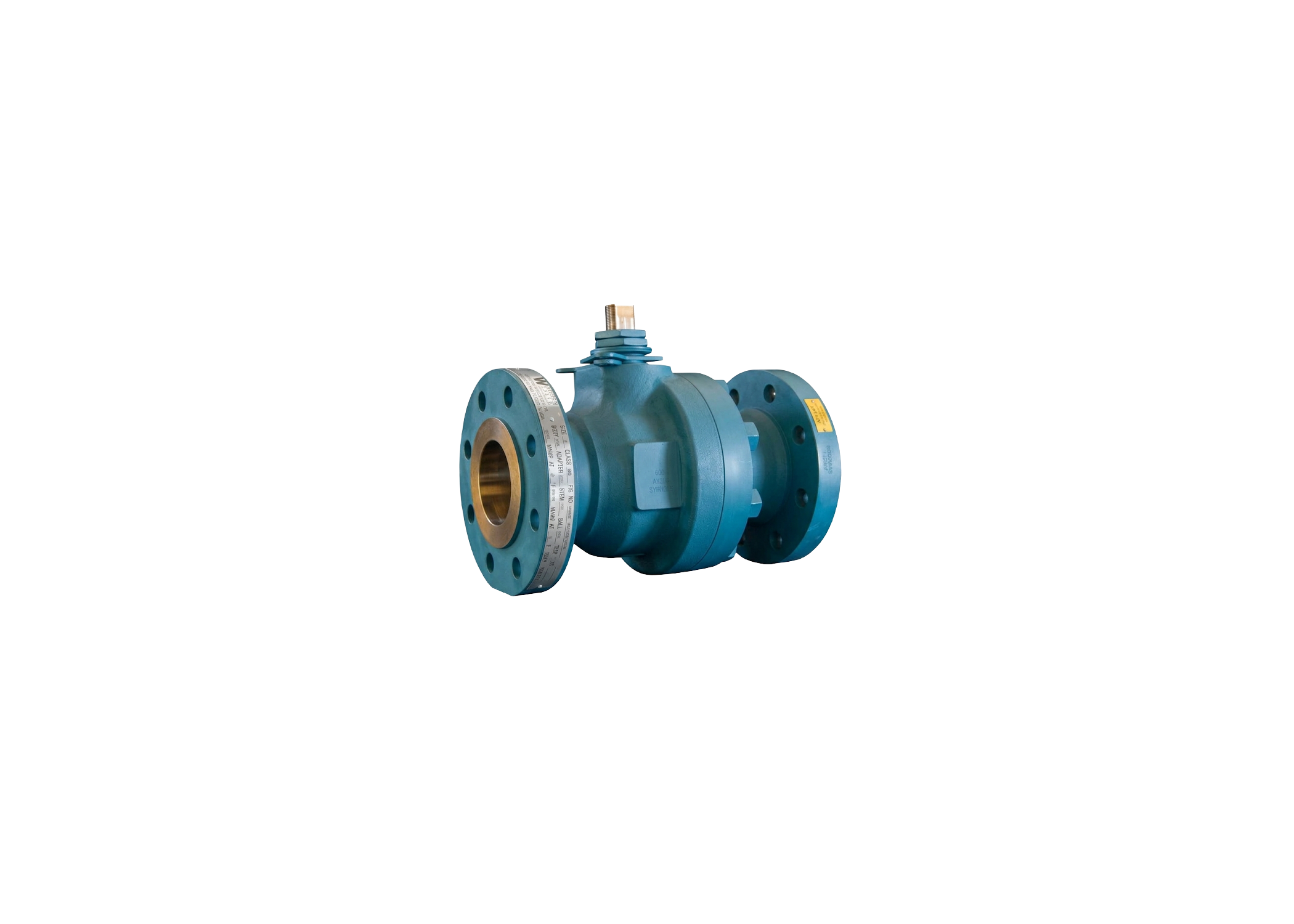

6D Floating Ball Valves
Warren Valve offers 2”-8 6D cast floating ball valves built to meet the industry's strictest specifications. Our products include ANSI Classes 150-600, material grade WCB cast carbon steel
6D FLOATING BALL VALVES for application in pipeline and piping systems for the Petroleum and Oil & Gas Industry.
Size Range
2” –8
Pressure Range
150 ANSI pressure class to 600 ANSI pressure class
Port Sizes
Two-piece full port design, Two-piece reduced port design
Material Grades
WCB, A105N
Trim Materials
Ball: 316 Stainless Steel, and exotic alloys. Stem: 316 stainless steel for ANSI 150-300#, F51 Duplex for ANSI 600#
Standard Seat Material
TFM 1600
Packing and Gasket material
Graphite
O-Ring material
HNBR 90 Durometer
End Configurations
Raised Face and RTJ
Standards
Fire safe, CE certified, NACE certified
